Automatic Cylindrical Battery Insulation Paper Pasting Machine

After-sales Service : 24/7 Technical Support

Model Number : ACEY-BS02

Dimensions : L1110mm*W710mm*H1580mm

Barley paper roll width : 100mm

MOQ : 1 Set

Delivery Time : 7~35 Days

Warranty : 1 Year Warranty with Lifetime Support

Brand Name : ACEY

Machine weight : 200Kg

Packaging Details : Plywood Case

Voltage Supply : Single-phase ~ 220V, 50Hz

Payment Terms : T/T,PayPal,L/C,Western Union

Weight : 200kg

Certification : CE

Rated power : 2KW

Price : USD6499-7200/Set (negotiable)

Pneumatic pressure : 0.4-0.6Mpa barley paper machine

Supply Ability : 200 Sets/Month

Speed : 2000PCS/hour, 2PCS per punch

Place of Origin : China

Contact Now

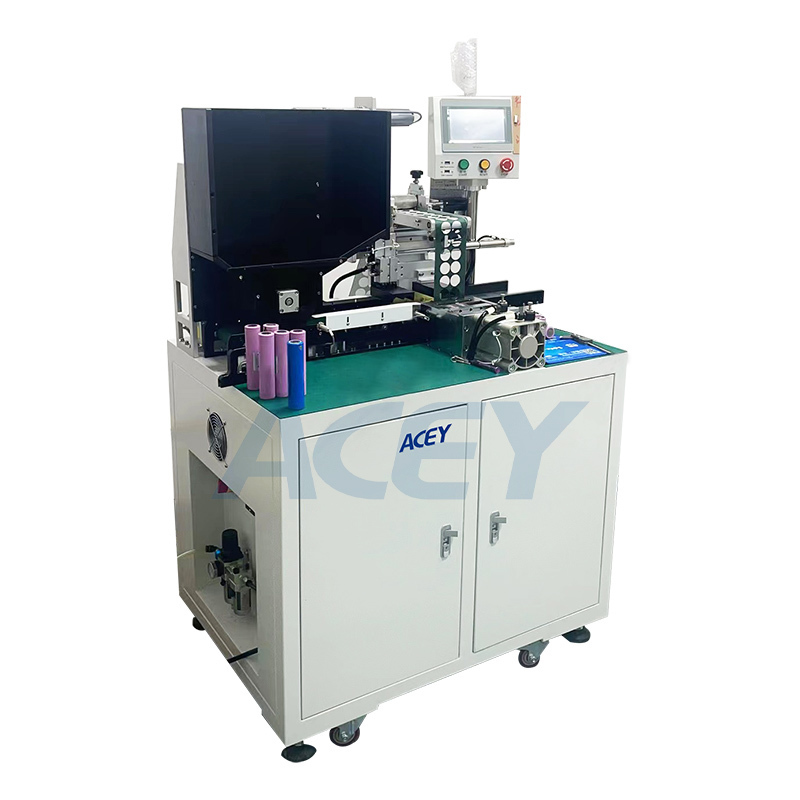

Automatic Cylindrical Battery Insulation Paper Pasting Machine
Product Overview

ACEY-BS02 Battery Insulation Paper Pasting Machine is designed for automatically applying highland barley paper or PVC pads to the positive or negative poles of 32140 and 33140 cylindrical battery cells. With automatic feeding, servo control and mold changeover, it provides a consistent and efficient sticking process for cylindrical battery pack assembly.

Equipment Features
  • Automatic Sticking: Automatically applies highland barley paper or PVC pads to battery poles.
  • 32140 & 33140 Compatible: Supports mold replacement for switching between these two cell sizes.
  • High Production Efficiency: Processes up to 2,000 pcs/hour, with 2 cells per punch.
  • Automatic Feeding: Hopper supports up to 400 cells per loading.
  • Servo & PLC Control: Equipped with a 7.5-inch touchscreen, PLC programmer and servo motor.
  • Compact & Mobile Design: Compact structure with universal casters for convenient movement.
  • Flexible Material Support: Compatible with highland barley paper or PVC material.
Technical Specifications
Features *The equipment has a compact structure design, beautiful appearance and small space occupation.
*The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.
*Replacing mold to stick other size battery is supportable(Only 33140 &32140)
Voltage Supply Single-phase ~ 220V, 50Hz
Rated power 2KW
Surface pad material Highland barley paper or PVC material
Material specification
requirements		 the max diameter of barley paper roll material is 350MM,
the inner diameter of paper roll core is 72-75MM
batrery type Battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material
Feeding method Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting
Pneumatic pressure 0.4-0.6Mpa barley paper machine
Cushioning power Electric or pneumatic
Control device 7.5 inch touch screen, PLC programmer and servo motor
Barley paper roll width 100mm
Speed 2000PCS/hour, 2PCS per punch
Dimensions L1110mm*W710mm*H1580mm
Machine weight 200Kg
Knife mold Slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water
Product Display
Automatic Cylindrical Battery Insulation Paper Pasting MachineAutomatic Cylindrical Battery Insulation Paper Pasting Machine
Automatic Cylindrical Battery Insulation Paper Pasting MachineAutomatic Cylindrical Battery Insulation Paper Pasting Machine
FAQ
1. How can manufacturers avoid uneven or misaligned insulation paper application?

ACEY-BS02 Battery Insulation Paper Pasting Machine uses automatic feeding and pasting with PLC and servo motor control, helping standardize the insulation paper application process and reduce dependence on repetitive manual operation.

2. How can battery manufacturers improve insulation paper pasting efficiency?

ACEY-BS02 Battery Insulation Paper Pasting Machine supports a production speed of up to 2,000 pcs/hour and processes 2 cells per punch. Its hopper can hold 400 cells per loading, helping reduce frequent manual feeding during production.

3. How can manufacturers handle different 32140 and 33140 battery cell sizes?

ACEY-BS02 Battery Insulation Paper Pasting Machine supports mold replacement for 32140 and 33140 cylindrical battery cells, allowing the equipment to switch between these two specified cell sizes without requiring a completely different machine.
